The Iron Series
52 min.
Maximum battery life
Dual-mode transmission
Seamless switching between 4G/5G and microwave image transmissions
100 TOPS
Onboard artificial intelligence processing
IP55/IP65
Industrial Protection rating
Industrial Drone with Interchangeable Pods

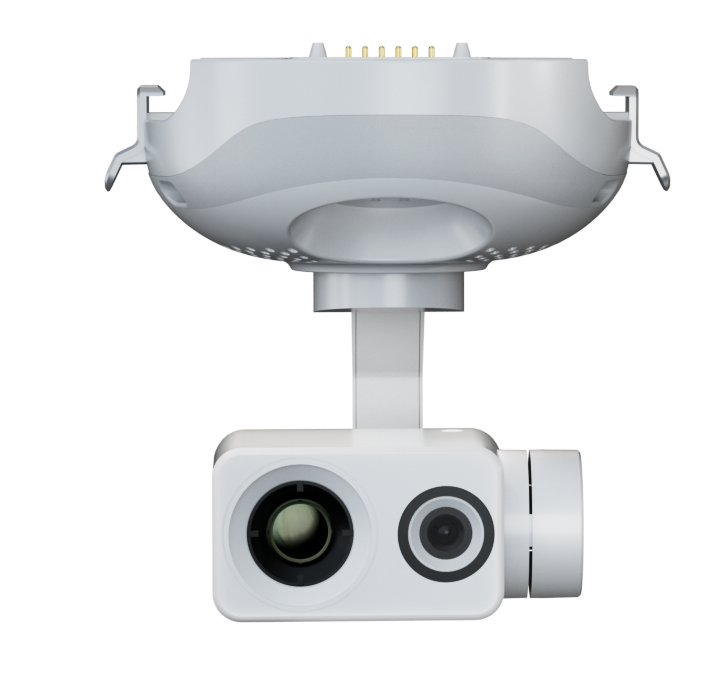

VISIBLE LIGHT AND INFRARED POD
- • 1/1.3" sensor
- • 48 million visible light pixels
- • 640x512 infrared resolution
- • Supports 3D modeling photogrammetry

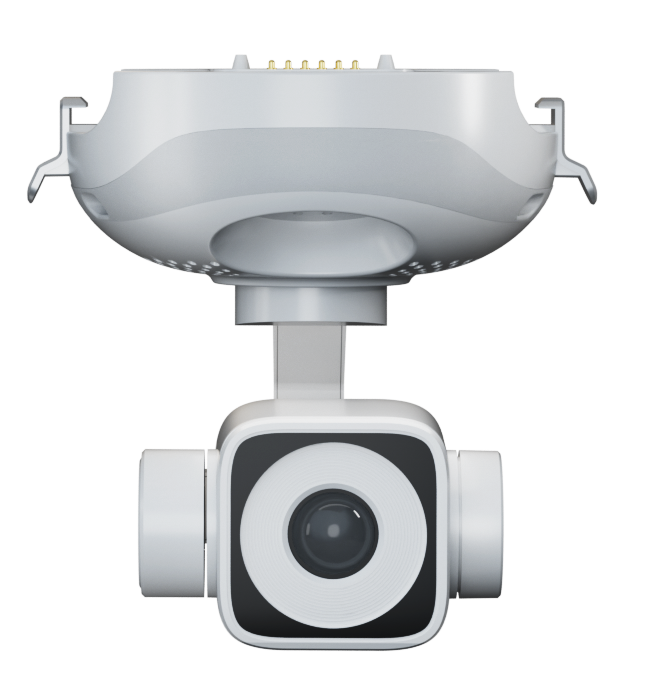

VISIBLE LIGHT POD
- • 1 inch CMOs
- • 20 million pixels
- • Supports precise 3D modeling photogrammetry

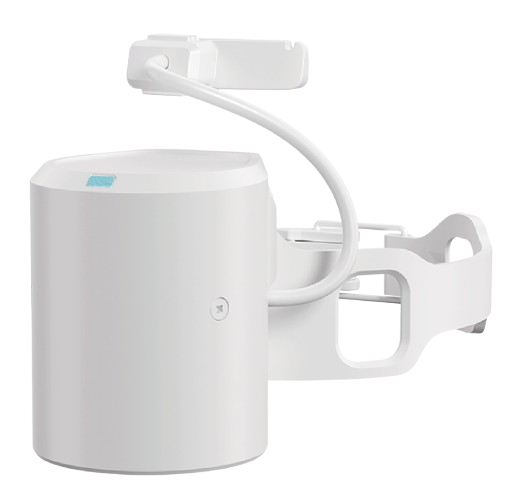

LOUDSPEAKER POD
- • Maximum volume 120dB at 1m
- • Max. range: 150m (70 dBm Tx power)
- • Real-time call and text-to-speech playback
- • Multiple recording modes

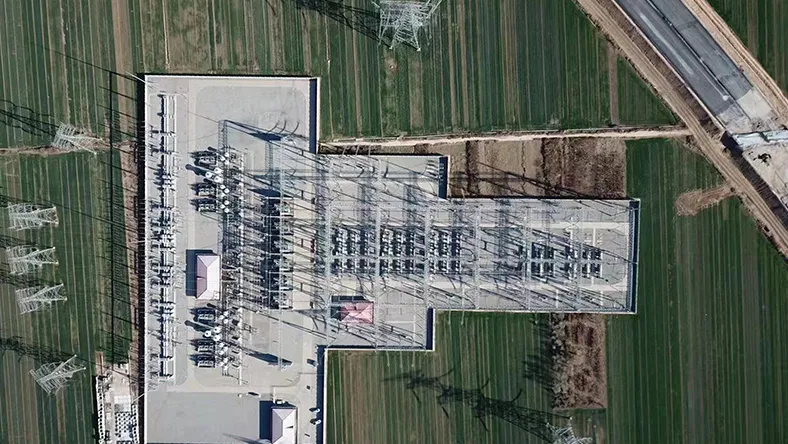

Taken with visible light and infrared pod.
Easily interchangeable pods serve as multi-purpose payload equipment capable of carrying out a wide range of tasks and obtaining the data you need.
Safe and Easy Flight with Onboard AI
With a computing power of 100 TOPS, powerful onboard AI allows drones to not just recognise surroundings, but continually optimise algorithms in real time. Omnidirectional visual perception with no blind spots and obstacle avoidance technology detect and avoid any physical barriers within a 50m range, ensuring safe and uninterrupted flight.
Fly Farther with Stable and Secure Communication
Data transmission via mobile networks (4G/5G) allow drones to fly farther with stable communication. In areas with poor signal, drones switch seamlessly to microwave transmission to communicate up to 15km. All data transmission is encrypted to ensure high security. Drones also support multi-GNSS compatibility (GPS/Galileo/GLONASS/Beidou).
Suitable for Extreme Industrial Scenarios
Each dock and accompanying drone feature high-level industrial protection and streamlined design. Fully automated docks make carrying out tasks easier than ever.
Automated Battery Swapping
Each dock comes with 4 sets of batteries and supports automated charging and replacement without human intervention.
RTK Precise Positioning
Docks serve as RTK base stations, allowing for centimeter-level precision positioning for drones.
Relay Coordinated Patrol
Use multiple Iron drones together to create a relay coordinated patrol for longer service.
Work Smarter with Automatic Mapping Powered by AI
SkyGrid's all-in-one hardware and software solution comprises of industrial automated drone systems paired with a powerful 4D Holographic Control Platform supported by AI. Fully automate workflows and 3D modelling without manual operation or processing.
Learn More About Our 4D PlatformREMOTE TASK ASSIGNMENT
Easily schedule and assign tasks remotely with one-click route planning optimized by machine learning.

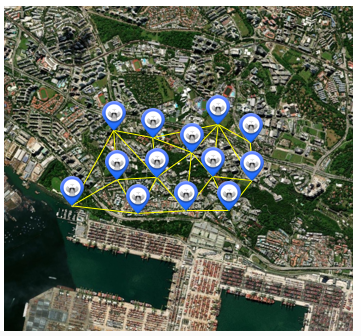

AUTOMATED DRONES
Autonomous drones intelligently fly, locate, and land at nearest available docks without the need for remote operators.
DATA COLLECTION AND TRANSMISSION
Data is autonomously collected and transmitted remotely from the dock.
CLOUD-BASED DATA PROCESSING
Data is automatically processed with AI and cloud-based computing.

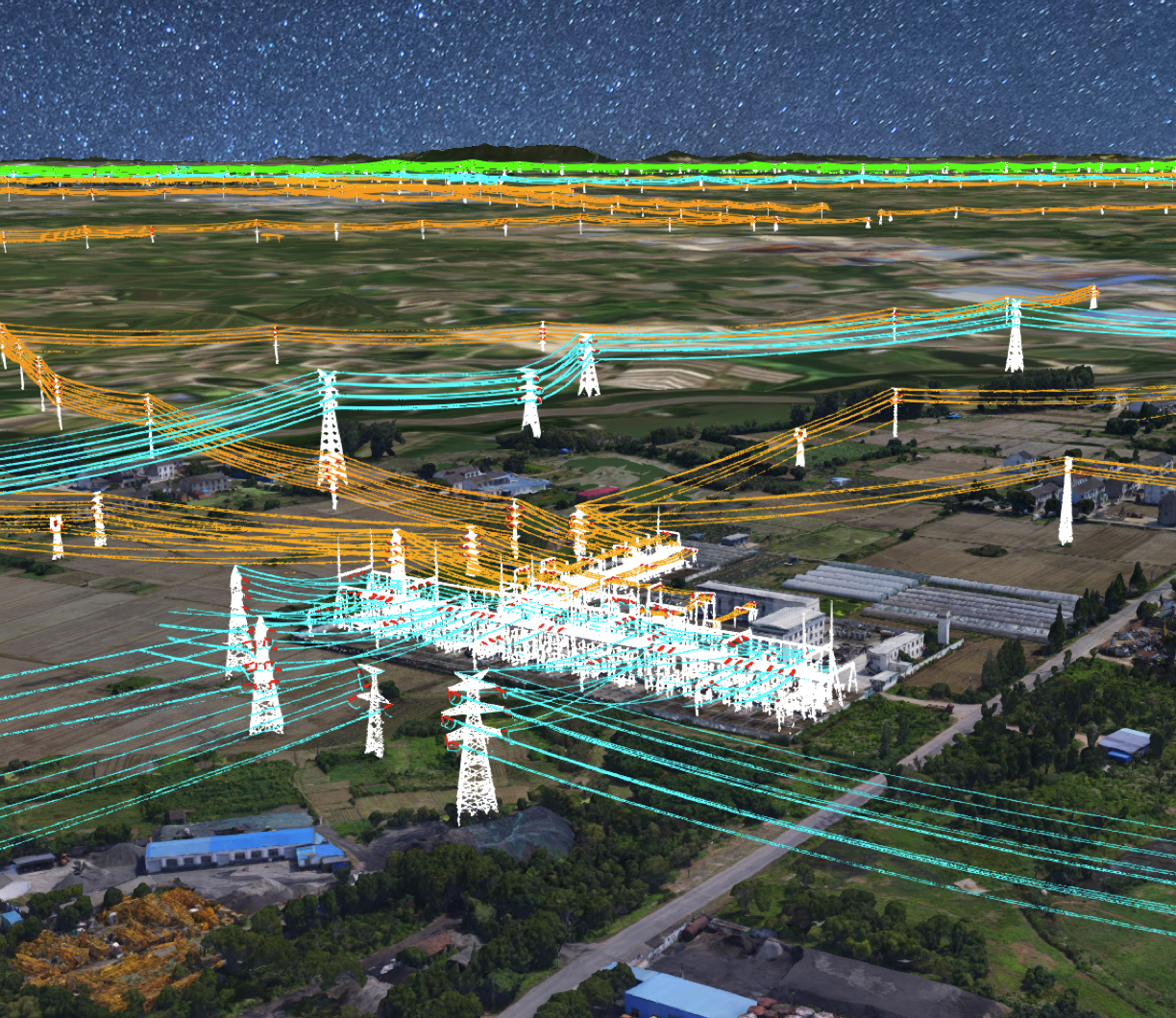

AUTOMATIC 3D MODEL GENERATION
3D scan and 3D Gaussian technology combined with integrated AI can automatically generate digital twins.
Top-of-the-Line Industrial Quality
Industrial Protection Rating
IP55
Resistant to dust and water.
Core Electronic Equipment Industrial Protection Rating
IP65
Completely protected from dust and water-resistant.
Operational Temperatures
-35° to 60°C
Operates reliably in extreme temperature conditions.
Wind Resistance Capability
Force 7 Winds
Capable of withstanding up to Force 7 winds (32-38mph).
Ready to Deploy Iron Series?
Contact our team to discuss how the Iron Series can transform your inspection operations.
Get Started
